BYP Pneumatic Actuator Series

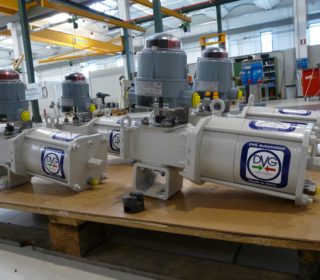

BYP Pneumatic Actuator Series The “BY” Series incorporates several new design features to provide higher efficiency and cost-effective solution. These actuators show lightweight and compact designs and introduce a new generation of patented mechanisms. ASK FOR QUOTATION Specifications Features & advantages Certifications & Catalogue Write to us Specifications Quarter turn SCOTCH YOKE Mechanism Double Acting & Spring Return Symmetric or canted yoke design Pneumatic power supply (up to 12 BARG) Output Torque Up to 13.000 Nm Standard temperature range -30°C +93°C Low temperature version -60°C + 93°C PED 2014/68/UE Compliant ATEX 2014/34/UE Compliant IP67M, NEMA 4, 4x & 6 as minimum SIL3 Capable according to IEC 61508 Corrosion resistant cylinder Manual Override available Protected travel stops are standard Modular concept Actuator in carbon steel – NO Aluminum NO Cast Iron Pressure retaining components 3.1 Certified according to EN10204 Key Features & Advantages Operating Range The double-acting models are available with individual test and guaranteed minimum output torque ranging from 40 Nm (350 lb-in) to 13,000 Nm (115,059 lb-in) The single acting models produce spring ending torque ranging from 41 Nm (362 lb-in) to 4693 Nm (41536 lb-in) Operating pressure ranges between 2 barg (30 psig) and 12 barg (175 psig) Standard design construction allows operating temperature from -30 degC (-20 degF) to +93 degC (+199 degF) Low Temperature extended operating range down to -60 degC (-76 degF) Scotch Yoke Patented Mechanism which reduced mechanical clearances between cylinder piston rod and driving module. Mechanism Guide System Patented Dual Guide Bar hard chromium plated to minimize driving block swing extending piston rod lifespan under heavy load &/or continuous modulating duty. Symmetric or canted yoke BY Series is available with either symmetric or canted yoke design depending on valve torque profile demand. Swept Volume Reduced air consumption with higher efficiency Water ingress protection Totally enclosed and weather-proof actuator center-body is engineered to meet IP66, IP67 IP67M and NEMA 4 & 4X specifications for submerged and high pressure water deluge application. Materials Cylinder Tube & all structural parts are manufactured in carbon steel material: no cast/grey iron or aluminum. All pressure containing part are supplied with 3.1 certificate according to EN10204. DVG guarantees, where applicable, that actuators are designed and manufactured according to PED (97/23 CE) directive . Cylinder tube is internally nickel-plated lined (minimum 25µm). Nickel-plating layer can be increased upon request. Seal Floating type piston seal prevents sticking phenomena after prolonged operation-less period and ensures [...] Read more
